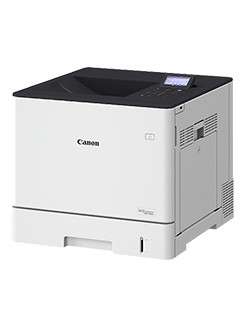

Color imageCLASS X LBP1538C |
| CORE FUNCTIONS |
Standard: Print |
| PROCESSOR |
Canon Custom Processor |
| CONTROL PANEL |
5-Line LCD |
| MEMORY |
1 GB |
| STANDARD INTERFACE CONNECTION |
USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n |
| PAPER CAPACITY (LETTER, 20 LB. BOND) |
Standard: 650 Sheets
Maximum: 2,300 Sheets |
| PAPER SOURCES (LETTER, 20 LB. BOND) |
Standard: 550-sheet Paper Cassette 100-sheet Stack Bypass
Optional (Up to Three5 ): 550-sheet Paper Cassette (Paper Feeder PF-D1)
Optional (Up to One): 550-sheet Paper Cassette (Cassette Feeding Unit-AV1) |
| PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) |
Standard: 200 Sheets |
| SUPPORTED MEDIA TYPES |
Cassettes: Thin, Plain, Recycled, Color, Heavy, Pre-punched, Bond, Labels
Stack Bypass: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Envelope, PostCard |
| SUPPORTED MEDIA SIZES |
Cassette: Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3" x 5" to Max. 8.5" x 14")
Optional Cassettes: Letter, Legal, Statement, Executive, Custom (Min 4" x 5.8" to Max. 8.5" x 14")
Stack Bypass: Letter, Legal, Statement, Executive Envelope: COM10, Monarch, C5, DL Custom (Min. 3" x 5" to Max. 8.5" x 14") |
| SUPPORTED MEDIA WEIGHTS |
Cassette: 16 lb. Bond to 43 lb. Bond (60 to 163 g/m2 )
Stack Bypass: 16 lb. Bond to 58 lb. Bond (60 to 216 g/m2 ) |
| WARM-UP TIME |
From Power On: 2 Seconds or Less
From Sleep Mode: 6 Seconds or Less |
| DIMENSIONS (W x D x H) |
Standard (Desktop): 18" x 18.3" x 15.3" (458 mm x 464 mm x 388 mm) |
| INSTALLATION SPACE (W x D x H) |
Standard (Desktop): 27.4" x 30.1" (696 mm x 764 mm)
Fully Configured: 32.1" x 34" (815 mm x 864 mm) |
| WEIGHT4 |
Unit: Approx. 63.9 lb. (29.0 kg) |
| OPERATING SYSTEM |
Windows® 7/Windows 8.1/Windows 10/Windows Server
2008/Windows Server 2008 R2/Windows Server 2012/ Windows Server 2012
R2/Windows Server 2016 /Mac OS X v10.10 (or later) |
| PRINTING METHOD |
Laser Beam Printing |
| PRINT SPEED (COLOR) |
Up to 40 ppm (Letter) |
| FIRST PRINT OUT TIME |
Approx. 7.5 Seconds |
| RECOMMENDED MONTHLY PAGE VOLUME |
2,000 - 10,000 Pages |
| PRINT RESOLUTION (dpi) |
600 x 600 |
| STANDARD PAGE DESCRIPTION LANGUAGES |
UFR II, PCL®6, PCL®5, Adobe PostScript 3® |
| DOUBLE-SIDED PRINTING |
Automatic (Standard) |
| DIRECT PRINT |
From RUI (PDF, EPS, TIFF/JPEG, XPS)
From USB Memory (PDF, TIFF/JPEG, XPS)
From Network Place (PDF, TIFF/JPEG, XPS) |
| PRINTING FROM MOBILE AND CLOUD-BASED SERVICES1 |
Apple® AirPrint®, Canon PRINT Business, Mopria™ Print Service, Universal Print, uniFLOW Secure Mobile Printing7 |
| FONTS |
PCL: 93 Fonts
PS: 136 Fonts |
| PRINT FEATURES |
Secure Print, Secure Watermark, Header/Footer, Page Layout,
Two-sided Printing, Mixed Paper Sizes/Orientations, Toner Reduction,
Poster Printing, Forced hold printing, Print Date, Scheduled Printing,
Printing Using a Virtual Printer |
| AUTHENTICATION AND ACCESS CONTROL |
User Authentication (Picture Login, Picture and PIN Login,
Username and Password Login, Function Level Login, Mobile Login),
Department ID Authentication (Department ID and PIN Login, Function
Level Login), uniFLOW Online Express (PIN Login, Picture Login,
Picture and PIN Login, Card Login, Card and PIN Login, Username and
Password Login, Department ID and PIN Login, Function Level Login),
Access Management System (Access Control) |
| DOCUMENT SECURITY |
Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print7 |
| NETWORK SECURITY |
TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall
Functionality (IP/MAC Address Filtering), Dual Network Support (Wired
LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network
Applications, Remote UI, USB Interface), G3 FAX separation from LAN,
USB Port Separation from LAN, Scan and Send - Virus Concerns for
E-mail Reception |
| DEVICE SECURITY |
Standard Storage Initialize, Job Log Conceal Function,
Protecting MFP Software Integrity, Verify System at Startup, Runtime
Intrusion Detection |
| DEVICE MANAGEMENT AND AUDITING |
Administrator Password, Digital Certificate and Key
Management, Audit Log, Cooperating with External Security Audit System
(Security Information and Event Management), Security Policy Setting |
| OPERATING ENVIRONMENT |
Temperature: 50 to 86º F
Humidity: 20 to 80% RH (No Condensation) |
| POWER REQUIREMENTS |
110-127 V, 60 Hz, 7.1 A |
| POWER CONSUMPTION |
Maximum: Approx. 1500 W
Standby: Approx. 35.3 W
Sleep Mode: Approx. 1.1 W
Typical Electricity Consumption (TEC) Rating: 0.46 kWh |
| STANDARDS |
ENERGY STAR® Qualified, Currently rated EPEAT Silver3 |
| TONER |
Toner T10 Black - Yields 13,000 Pages
Toner T10 Cyan - Yields 10,000 Pages
Toner T10 Magenta - Yields 10,000 Pages
Toner T10 Yellow - Yields 10,000 Pages |
