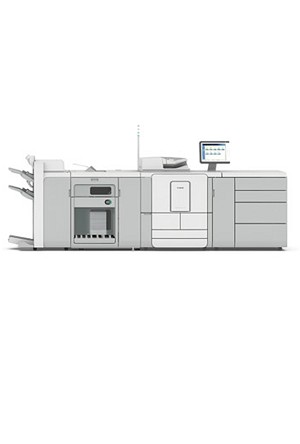

Canon varioPRINT 140/130/115 |
| MAIN ENGINE | |
| TECHNOLOGY | DirectPress |
| RESOLUTION | Up to 600 x 2400 dpi |
| PRINT SPEED (SIMPLEX / DUPLEX) | |
| | vP140 | vP130 | vP115 |
| 8.5" x 11" | Up to 140 ipm | Up to 130 ipm | Up to 115 ipm |
| 11" x 17" | Up to 73 ipm | Up to 68 ipm | Up to 60 ipm |
| PAPER SIZE | 5.5" x 7.17" to 12.6" x 19.2" |
| | |
| PAPER FEEDING | |
| STANDARD | Up to 4,000 Sheets (20 lb. Bond) |
| MAXIMUM | Up to 12,000 Sheets (20 lb. Bond)* |
| PAPER WEIGHT | 13 lb. Bond to 110 lb. Cover* (50 gsm to 300 gsm) |
| DUPLEXING | Automatic Duplex Any Supported Stock |
| POWER SOURCE | 208 V/20 A |
| DIMENSIONS (H x W x D) | 56.3" x 44.5" x 30.1"(Includes operator panel) |
| | |
| INPUT ACCESSORIES | |
| ePIM (External Paper Input Module) |
| PAPER CAPACITY | Up to 4,600 Sheets (20 lb. Bond) |
| MAXIMUM CAPACITY | Up to 8,000 Sheets (20 lb. Bond)* |
| PAPER SIZE | 8" x 8" to 13" x 19.2" |
| PAPER WEIGHT | 13 lb. Bond to 110 lb. Cover (50 gsm to 300 gsm) |
| DIMENSIONS (H x W x D) | 41.6" x 38.9" x 29.3" |
| POWER SOURCE | 120 V/15 A |
| | |
DUPLEX COLOR IMAGE READER-L1** | |
| IMAGE SENSOR | CCD |
| DOCUMENT SIZE | Statement to 11" x 17" |
| RESOLUTION | Up to 600 x 600 dpi |
| TRAY CAPACITY | Up 300 Sheets (20 lb. Bond) |
| SCAN SPEED | |
| BW/COLOR: | Up to 120 ipm (300 x 300 dpi) |
| BW: | Up to 108 ipm (600 x 600 dpi) |
| COLOR: | Up to 120 ipm (600 x 300 dpi)
Up to 25 ipm (600 x 600 dpi) |
| | |
| FINISHING ACCESSORIES | |
| MULTIFUNCTION PROFESSIONAL PUNCHER-B1 |
| PAPER WEIGHT | |
| PLAIN | 20 lb. Bond to 110 lb. Cover(75 gsm to 300 gsm) |
| COATED | 20 lb. Bond to 110 lb. Cover(80 gsm to 300 gsm) |
| PAPER SIZE | 12" x 18", 11" x 17", LTR, LGL, LTR-R, STMT |
| DIE SET PATTERNS | Loose Leaf 3-Hole/5-Hole, Velo Bind, 11-Hole, Plastic Comb 19-Hole, Twin Loop, 21-Hole/32-Hole, Color Coil 44-Hole |
| DIMENSIONS (H x W x D) | 40.9" x 17.5." x 31.2" |
| POWER SUPPLY | 120 V/15 A |
| | |
| HIGH-CAPACITY STACKER-H1 | |
| OFFSET STACK CAPACITY | Up to 6,000 Sheets (20 lb. Bond) |
| TOP TRAY CAPACITY | Up to 200 Sheets (20 lb. Bond) |
| PAPER SIZE | 7.2" x 7.2" to 13" x 19.2" |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover(52 gsm to 300 gsm) |
| MAX. CONNECTIVITY | 1 Unit |
| DIMENSIONS (H x W x D) | 40.9" x 35.4" x 29.3" |
| POWER SOURCE | 120 V/15 A |
| | |
| STAPLE FINISHER-W1 / BOOKLET FINISHER-W1 |
| TRAY CAPACITY | |
| TOP TRAY | Up to 1,000 Sheets (20 lb. Bond) |
| LOWER TRAY | Up to 4,000 Sheets (20 lb. Bond) |
| SADDLE-STITCH TRAY | Up to 30 Booklets or Limitless |
| STAPLE POSITIONS | Corner Stapling, Double Stapling |
| PAPER WEIGHT | 14 lb. Cover to 110 lb. Cover(52 gsm to 300 gsm) |
| PAPER SIZE | |
| STAPLING | 11" x 17", LGL, LTR-R, EXEC, LTR,12" x 18", 13" x 19.2", Custom Size(8.3" x 11" to 13" x 19.2") |
| SADDLE FINISHER | 11" x 17", LGL, LTR-R, 12" x 18",13" x 19", Custom Size (8.3" x 11" to 13" x 19.2") |
| STAPLING CAPACITY | Up to 100 Sheets |
| BOOKLET STAPLING CAPACITY (20 LB. BOND) |
| UNCOATED | Up to 25 Sheets |
| COATED | Up to 10 Sheets |
| V-FOLDING | Up to 5 Sheets without Stitch |
| DIMENSIONS (H x W x D) | |
| STAPLE FINISHER | 48.8" x 35.0" x 31.2" |
| BOOKLET FINISHER | 48.8" x 41.7" x 31.2" |
| POWER SOURCE | 120 V/15 A |
| | |
| BOOKLET TRIMMER-F1? | |
| MARGIN TRIMMING | Front-edge Trim |
| TRIM AMOUNT | 0.08" to 1.1" |
| TRIM THICKNESS | 50 Sheets |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover(52 gsm to 300 gsm) |
| OUTPUT TRAY CAPACITY | 30 Booklets |
| DIMENSIONS (H x W x D) | 40.9" x 62.1" x 30.3" |
| | |
| TWO-KNIFE BOOKLET TRIMMER-A1?? | |
| MARGIN TRIMMING | Top and Bottom |
| TRIM AMOUNT | 0.08" to 0.59" |
| TRIM THICKNESS | 50 Sheets |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover(52 gsm to 300 gsm) |
| DIMENSIONS (H x W x D) | 40.9" x 21.1" x 30.3" |
| POWER SUPPLY | 120 V/15 A |
| | |
| PUNCHER UNIT-BS1 (OPTION FOR STAPLE FINISHER-W1 / BOOKLET FINISHER-W1 |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover(52 gsm to 300 gsm) |
| PAPER SIZES | |
| 2-Hole | Legal, Letter-R, Custom Size(7.2" x 7.2" to 11.7" x 17") |
| 3-Hole | 11" x 17", Letter, Executive-R, Custom Size (9.4" x 7.2" to 11.7" x 17") |
| | |
| DOCUMENT INSERTION UNIT-N1 | |
| TRAY CAPACITY | |
| UPPER TRAY | Up to 200 Sheets (20 lb. Bond) |
| LOWER TRAY | Up to 200 Sheets (20 lb. Bond) |
| PAPER WEIGHT | 14 lb. Bond to 110 lb. Cover(52 gsm to 300 gsm) |
| PAPER SIZE | 11" x 17", 12" x 18", 13" x 19", LGL, LTR, LTR-R, EXEC, Custom Size (7.2" x 7.2" to 13" x 19.2") |
| | |
| PAPER FOLDING UNIT-J1 | |
| DOUBLE PARALLEL FOLD | Legal, Letter-R |
| C/ACCORDION FOLD | Letter-R |
| Z-FOLD | 11" x 17" |
| HALF-FOLD | Letter-R |
| SUPPORTED MEDIA WEIGHTS | 14 lb. Bond to 28 lb. Bond(50 gsm to 105 gsm) |
| POWER SOURCE | From Finisher |
| DIMENSIONS (H x W x D) | 46.87" x 13.25" x 31.25" |
| WEIGHT | 157 lb. (71 kg) |
| | |
| CONSUMABLES | |
| TONER | Canon varioPRINT DP Toner |
| | |
| FOOTNOTES |
* With ePIM and two Duo Tray options installed
** Included in MFP model.
? Must connect to Booklet Finisher-W1.
? ? Must connect to Booklet Trimmer-F1. |
