Printer Type

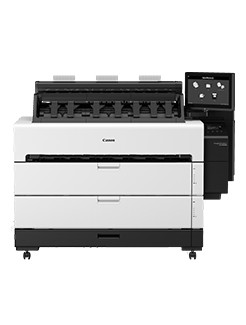

5-Color 36-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
Print Resolution (Up to): 2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
MacOS 10.12.6 and later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
5 picoliter
Ink Capacity
330ml or 700ml per color
Ink Droplet Size
Pigment Ink
Color Set
Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
128 GB (Virtual) 2 GB (Physical)
Media Width
Cut Sheet - 8” - 36”
Roll Feed - 8” - 36”
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
6.9” (175m)
Borderless Printing Width
All sizes
Paper Feed Method
Roll Feed: Two Roll, Front-loading
Cut Sheet: Front-loading
Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx
Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 7.0 Bels or less
Physical Dimensions
47” x 61” x 38” (Main Unit + Paper output support + Top output guide)
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 157W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06)Maintenance Cartridge (MC-30)Ink Tanks (PFI-340/PFI-740)
Software Available
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, Canon Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
