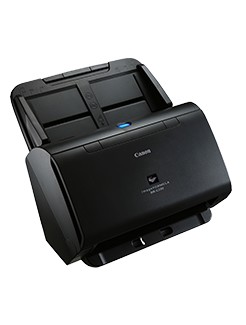

Canon DR-C230 SCANNER (30PPM)

Canon DR-C230 SCANNER (30PPM)

Part Number:CANDR-C230
A compact document scanner with the speed, power and flexibility to thrive in the most-demanding and fast-paced environments.



Manufacturer Part Number:

Login to your account here to see item pricing.

To signup for a new account click here to register

For more information please give us a call at:
(800).729.8320 Monday - Friday 8:30am - 5:30pm, closed weekends and major holidays.


Desktop Type Sheet Fed Scanner

Scanning sensor unit

CMOS CIS 1 Line Sensor

Optical resolution


Light source


Scanning side

Front / Back / Duplex


High speed USB 2.0

Dimensions (W x D x H)

Trays Closed: 291 x 253 x 231 mm
Trays Opened: 291 x 603 x 363 mm


Approx. 2.8kg

Power requirements

AC 100-240V (50/60Hz)

Power Consumption

Scanning: 19W or less
Sleep mode: 1.4W or less
Power turned off: 0.1W or less

Operating Environment

10 - 32.5 °C
Humidity: 20 - 80% RH

Environmental compliance


Scanning specifications

Black and White

30ppm / 60ipm


30ppm / 60ipm

Output resolution

150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi

Output mode

Black & White/Error Diffusion/ Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour

Suggested Daily Duty Cycle

Approx. 3500 scans

Document specifications


50.8 - 216mm


54 - 356mm


27 - 209g/m² (0.06 - 0.25mm)

Long document mode

3000mm Max

Business card scanning

Size: 50.8 x 85mm or larger
Thickness: Less than 0.45 mm

Plastic card scanning

Size: 53.9 x 85.5mm
Thickness: 0.76mm (Embossed Card up to 1.4mm thick is supported)

Passport scanning

Up to 4mm thick (via carrier sheet)

Paper separation

Retard Roller Method

Feeder capacity

60-sheets (80g/m²)

Special Features

Automatic Page Size Detection, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto Colour Detection, Shadow Cropping, MultiStream, Adjustable gamma settings, Skip Blank Page, Folio Mode, Scan Area Setting, Batch Separation with white blank sheet or patchcode, Moiré Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Double Feed Release, Double Feed Detection (Ultrasonic Sensor, Length)
