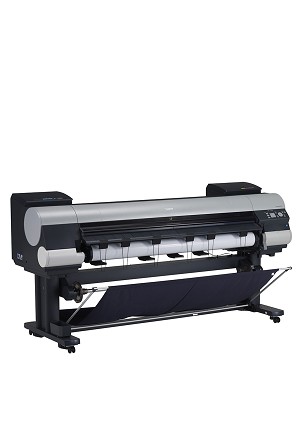

Canon imagePROGRAF iPF9400S Large Format Pigment Printer

Canon imagePROGRAF iPF9400S Large Format Pigment Printer
Canon imagePROGRAF iPF9400S Large Format Pigment Printer

Canon imagePROGRAF iPF9400S Large Format Pigment Printer

Part Number:CANIPF9400S
An extremely versatile solution, the 60" imagePROGRAF iPF9400S printer is ideal for those who need quality large format output and maximum productivity. Built for the photography, proofing and production markets, the iPF9400S printer delivers high quality imaging while increasing overall productivity. An incredibly large color spectrum is produced by the 8-Color LUCIA EX pigment ink set, which also provides better scratch resistance and smoother gradations. The new Multi-sensor included with this printer provides improved color density detection and allows for a full calibration to be completed within 15 minutes, with the ability to use non-Canon branded media. Borderless printing of up to 60” is now possible with this printer and the new economy print mode allows for quality printing with limited ink usage.

Manufacturer Part Number:

6565B002AA
Login to your account here to see item pricing.

To signup for a new account click here to register

For more information please give us a call at:
(800).729.8320 Monday - Friday 8:30am - 5:30pm, closed weekends and major holidays.

Printer Type

8-Color 60-inch Printer

Number of Nozzles

Total: 20,480
All Colors: 2,560 nozzles each

Nozzle Pitch

1,200 dpi

Nozzle Recovery System

Non-firing nozzle detection and compensation

Print Resolution (Up to)

2,400 x 1,200 dpi (Max)

OS Compatibility

Windows® (XP/Vista 32/64bit/Windows 7 32/64bit)
Macintosh® (OSX)

Standard Interfaces

USB 2.0 High-Speed
10/100/1000 Base-T/TX

Ink Droplet Size

4 picoliter

Ink Capacity

330ml per color2 (Optional 700ml)

Ink Droplet Size

LUCIA EX Ink (Pigment based)

Color Set

Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Gray

Buffer Ram

640 MB

Hard Drive

250 GB

Media Width

Cut Sheet: 8 - 60
Roll: 10 - 60

Media Thickness

Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
Roll: 0.07 - 0.8mm (2.8 - 31.4mil)

Maximum Roll Print Length

59 Feet (18 meters)2

Maximum Media Roll Diameter

5.9 (150mm)

Borderless Printing Width

515mm (JIS B2), 1,030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10, 14, 17, 24, 36, 42

Paper Feed Method

Roll Feed: One Roll, front output
Front Loading Manual Feed: One sheet, front output

Languages

GARO (Canon Proprietary)

Noise Level Approx

Operation: 68 dB (A) or less
Standby: 35 dB (A) or less

Physical Dimensions

45 (H) x 90.5 (W) x 30.2 (D)

Weight

Approximately 355 lbs. with stand

Power Source

AC-100-240V (50-60Hz)

Power Consumption

Maximum: 190W or less
Standby: 6W or less
Power Off: .5W or less (Compliant with Executive Order)

Operating Environment

Temperature: 59°-86° F (15°-30° C)
Relative Humidity - 10-80% (No Condensation)

User-replaceable items

Print Head (PF-05)
Maintenance Cartridge (MC-08)
Durable Rotary Media Cutter (CT-06)
Ink Tanks (PFI-306, PFI-706)

Software Included

Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Adobe Photoshop, Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Accounting Manager
