Nuworld Business Systems

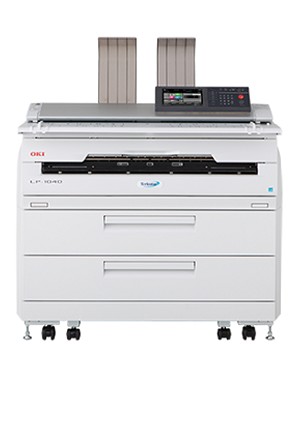

OKI LP-1040MF

 >  OKI LP-1040MF
OKI LP-1040MF
OKI LP-1040MF

OKI LP-1040MF


Part Number:OKILP-1040MF
Compact and easy-to-use, the Teriostar LP-1040-MF combines fast mono/color scanning with high-performance LED mono printing which is ideal for the architecture, engineering and construction (AEC) industry.

MSRP:

$19,999.00

Manufacturer Part Number:

U10000144700
Login to your account here to see item pricing.

To signup for a new account click here to register

For more information please give us a call at:
(800).729.8320 Monday - Friday 8:30am - 5:30pm, closed weekends and major holidays.

Printer

Printing Technology Electrophotographic Technology (LED exposure / single component type dry development / OPC drum)
Print Resolution 600 dpi
Continuous Print Speed 9.0 A1 (841×594 mm)-size prints per minute
Print Supply Method Roll Paper x 4
Paper Types Plain, Tracing (60 gsm), Film (121.5 gsm)
Paper Size ARCH E (48×36"), A0 (1189×841 mm), A1 (841×594 mm), A2 (594×420 mm), A3 (420×297 mm)
Print Length *1 15 m
Guaranteed Print Area Full area excluding0.2" (5-mm) top, bottom, left, and right margins
Supported Data Formats HP-GL, HP-GL/2, HP RTL, TIFF, CALS
Printer Driver (Click here for latest OS) Windows 10, Windows 8.1, Windows 7, Windows Vista, Windows Server 2012, Windows Server 2012 R2, Windows Server 2008, Windows Server 2008 R2, OS X 10.11, OS X 10.10, OS X 10.9
AutoCAD HDI Driver AutoCAD 2011, 2012, 2013, 2014, 2015, 2016
Utility TerioStation2
Interface 1000BASE-T/100BASE-TX/10BASE-T
Network Protocol TCP/IP(IPv4/IPv6)
LPD
RAW
FTP
Logical Port 20 ports

Footnotes;

*1 Print length depends on types of media or operating environment.

Scanner

Scan Resolution 600 dpi
Scan Width Maximum 914 mm
Scan Length *1 Maximum 15 m
Scan Speed *2 Black & White/Color: Maximum 240 mm per second
Supported Data Formats Black & White: PDF, TIFF
Color: PDF, TIFF, JPEG
Interface 1000BASE-T/100BASE-TX/10BASE-T
Scanner function Scan to Folder (CIFS, FTP)
Scan to Printer (LPR, RAW)
Scan to E-mail (SMTP)
Scan to HDD
Network TWAIN Scanner
Scan to USB

Footnotes;

*1 Maximum scanning length may be limited by paper size, resolution or data format.

*2 Scanning speed varies by resolution.

Others

Memory 2 GB
HDD 500 GB
Web Function Available
Security Authentication Print
Authentication Copy
Authentication Scan
Job Accounting Available
Dimensions *1 1200 x 640 x 1192 mm
Weight *2 250 kg or less
Power 230 VAC, 50/60 Hz, 9 A
Power Consumption 1950 W or less
Warm-Up Time 180 seconds or less

Footnotes;

*1 Stacker, tray and paper outlet guide are excluded.

*2 Toner and paper are excluded.
