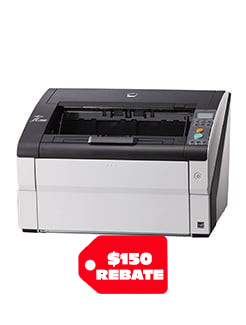

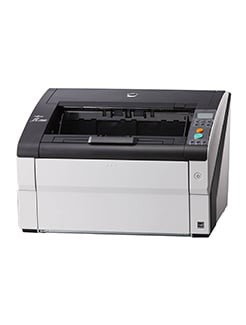

Fujitsu FI-7800 PRODUCTION DOCUMENT SCANNER

Fujitsu FI-7800 PRODUCTION DOCUMENT SCANNER
Fujitsu FI-7800 PRODUCTION DOCUMENT SCANNER

Fujitsu FI-7800 PRODUCTION DOCUMENT SCANNER

Part Number:FUJFI-7800

Manufacturer Part Number:

PA03800-B405
Login to your account here to see item pricing.

To signup for a new account click here to register

For more information please give us a call at:
(800).729.8320 Monday - Friday 8:30am - 5:30pm, closed weekends and major holidays.
Product Name fi-7800
Scanner Type ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed(1) (A4 Landscape)(Color(2)/Grayscale(2)/Monochrome(3)) Simplex: 110 ppm (200/300 dpi)
Duplex: 220 ipm (200/300 dpi)
Scanning Speed(1) (A4 Portrait)(Color(2)/Grayscale(2)/Monochrome(3)) Simplex: 90 ppm (200/300 dpi)
Duplex: 180 ipm (200/300 dpi)
Image Sensor Type Color CCD x 2 (front x 1, back x 1)
Light Source White LED Array x 4 (front x 2, back x 2)
Optical Resolution 600 dpi
Output Resolution(4)
(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)(5)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White / Black (selectable)
Document SizeMaximum304.8 x 431.8 mm (12 x 17 in.)
Minimum52 x 74 mm (2 x 3 in.)
Long Page Scanning(6)5,588 mm (220 in.)
Paper Weight (Thickness)A4 to A5 Size20 to 209 g/m² (5.4 to 56 lb)
Less than A5 Size / Over A4 Size41 to 209 g/m² (11 to 56 lb)
ADF Capacity(7) 500 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume(8) 100,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Lag detection
Interface USB 2.0 / USB 1.1
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 200 W or less
Sleep Mode 3.2 W or less
Auto Standby (Off) Mode Less than 0.3 W
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions(9) (W x D x H) 460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.)
Weight 32 kg (70 lb) or less
Supported Operating System Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)
Included Software / Drivers PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver(10), PaperStream Capture, 2D Barcode for PaperStream(11), Software Operation Panel, Error Recovery Guide, Scanner Central Admin
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection
Included Items AC cable, USB cable, Setup DVD-ROM
  1. Actual scanning speeds are affected by data transmission and software processing times.
  2. Indicated speeds are from using JPEG compression.
  3. Indicated speeds are from using TIFF CCITT Group 4 compression.
  4. When scanning in high resolutions (500 dpi or above), scanning may be rejected depending on scanning mode, document size, memory size, and application program. Selectable maximum density may vary depending on the length of the scanned document.
  5. Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
  6. Documents between 431.8 mm (17 in.) and 863 mm (34 in.) in length are limited to 400 dpi. Documents between 863 mm and 3,175 mm (125 in.) in length are limited to 300 dpi.
  7. Maximum capacity depends on paper weight and may vary.
  8. Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability.
  9. With the ADF hopper closed.
  10. Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.
  11. Software can be downloaded from the website designated in the Setup DVD-ROM.
