Primary Information

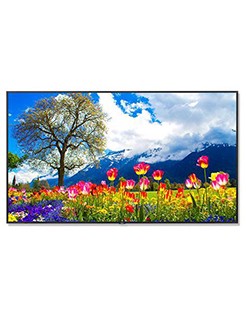

Model: M981
Display Type: LCD Display
Display Format: 4K Ultra HD
Display Technology: LED Backlight; IPS
Flat / Curved: Flat
Max Resolution: 3840 x 2160
Display Diagonal Size: 98 Inch
Display / Color Support: 1.07 Billion Colors
Display / Refresh Rate: 60 Hz
Dot Pitch / Pixel Pitch: 0.562 Mm
Image Contrast Ratio: 8000:1
Brightness: 500 CD/M2
Viewing Angle: 178/178
Image Aspect Ratio: 16:9
Screen Type: Anti-Reflection
HDR Capable: Yes
Picture Enhancements: None
Network Connectivity: LAN
Audio Output: Audio Mini-Jack
Interfaces: Digital: HDMI 2.0 In x2 (with HDCP, HDMI1 supports ARC), DisplayPort 1.4 x2 (with HDCP); Audio: DisplayPort Audio x2, HDMI Audio x2; External Control: RS-232C, LAN (100Mbit), 3.5mm Mini-Jack (IR Remote); Data: USB 2.0 x2 (1 x 5V/2A and Service, 1x Downstream Port), USB Type B (Upstream Port, and Software);
Power Consumption Sleeping: None
Power Consumption SDR (On mode): None
Power Consumption (Off Mode): None
Power / Voltage Required: 5V/2A
Power Consumption Standby: 0.5W
Stand: None
VESA Mount Compatible: 600mm x 400mm
Width: 75.9 Inch
Depth: 3.3 Inch
Height: 43.3 Inch
Weight: 67 Kg
Service & Support Type: 3 years Advanced Exchange
Features: Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation; 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before! Landscape and Portrait orientation allows for flexibility of installation dependent on your needs; Accepts Intel Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays; Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support through proprieatry slot; Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C; 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation; Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections; Multi Picture Mode allows for the display to show multiple simultaneous images on the screen at once without the use of additional software or hardware; Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails;
Min Operating Temperature: -20 celsius
Max Operating Temperature: 60 celsius
Humidity Range Operating: 20 - 80%
Green Product Information
Energy Star Compliant: Yes
Display
Brightness: 500 CD/M2
Display / Color Support: 1.07 Billion Colors
Display Diagonal Size: 98 Inch
Display Type: LCD Display
Dot Pitch / Pixel Pitch: 0.562 Mm
Flat / Curved: Flat
HDR Capable: Yes
Image Aspect Ratio: 16:9
Picture Enhancements: None
Screen Type: Anti-Reflection
Flat / Curved: Flat
Power
Power / Voltage Required: 5V/2A
Power Consumption Sleeping: None
Power Consumption (Off Mode): None
Power Consumption SDR (On mode): None
Special Feature
COO: CHINA
UNSPSC Code
UNSPSC Code: 44111511
